Quad Tilt TraySorter

Massive Throughput for Small Items

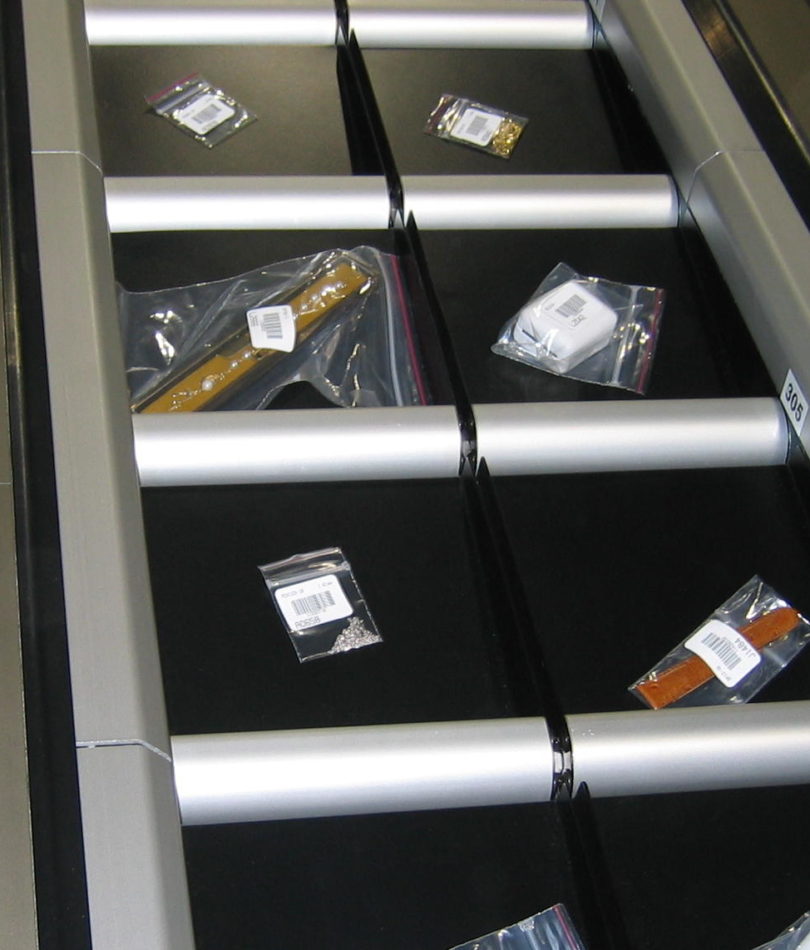

The EuroSort Quad-Tilt Tray Sorter (sometimes called the multi-tray bombay sorter) is our answer for operations handling large amounts of small products and requires extremely high throughputs to maintain productivity and efficiency. Our quad tilt tray sorter is able to maintain these high throughputs by utilizing four independently controlled multi tilt trays that use a gentle tilting motion to discharge the product quickly and accurately into its designated chute. This ensures that every sorted product is handled with care throughout the entire sorting process.

A New Standard for Speed

From its initial inception, the EuroSort Quad Tilt Tray Sorter was designed to be durable, quiet, and requires very little regular maintenance. The four independent trays on each of our quad tilt tray sorters allow for exponentially higher throughput than other tilt tray sorters on the market today. With its modular design and all-aluminum framework, our multi tilt tray sorters allow for easy customization, flexible layouts, and future expansion.

The EuroSort Quad Tilt Tray Sorter is unique in the automated unit sorting industry because it is the only tilt tray sorter that can sort jewelry and other miscellaneous small items accurately and gently at high throughput rates of up to 39,600 items per hour. Currently, EuroSort Quad Tilt Tray Sorters are being used in a variety of diverse industries, such as pharmaceuticals, retail, jewelry, and small accessories, helping to simplify and improve any automated sorting needs.

ProductsThroughputMin. Item SizeMax. Item SizeWeight
Jewelry, Accessories, and Pharmaceuticals 15,000 to 69,000 trays per hour 1.5 x 1.5 x 0.1 in8 x 10 x 6 in10 g - 2 lbs

Benefits of the Quad Tilt Tray Sorter

  • Flat-Drop Technology – Reduces handling at packout, reduces/eliminates product damage, and increases the accuracy and precision of our split tray sorters.
  • Manual Induction Ease – Save money, reduce complication, and increase your flexibility with a machine that allows for manual induction.
  • Flex Drive System – The EuroSort Flex Drive did away with wheel-style turns, belts, and chains, effectively eliminating the last single point of failure on our sorters and increasing flexibility and reliability.
  • Safe Tray Design –No sharp edges, minimal spacing between trays, finger guarding where necessary, and thoughtfully designed touchpoints take the worry out of sortation.
  • No-Touch Pack Out – The tightest discharge pitch in the industry enables the sorting of items directly into the outbound carton/tote/container with no secondary touch during packout.
  • No-Weld Framework –Easy installation, easy expansion, and superior modularity of your sortation system.
  • Heavy Duty Tray Options – Up to 25 lbs on a single tray
  • Smallest Discharge Pitch – Increased accuracy allows for a smaller discharge pitch and a denser sorter footprint.
  • Un-Bagged/Loose Item Sorting Capability – No polybag no problem. Sort even loose garments with ease.
  • Quiet As a Mouse Operation – Noise levels below 70dB
Quad Tilt Tray Sortation -Jewelry Industry - EuroSort

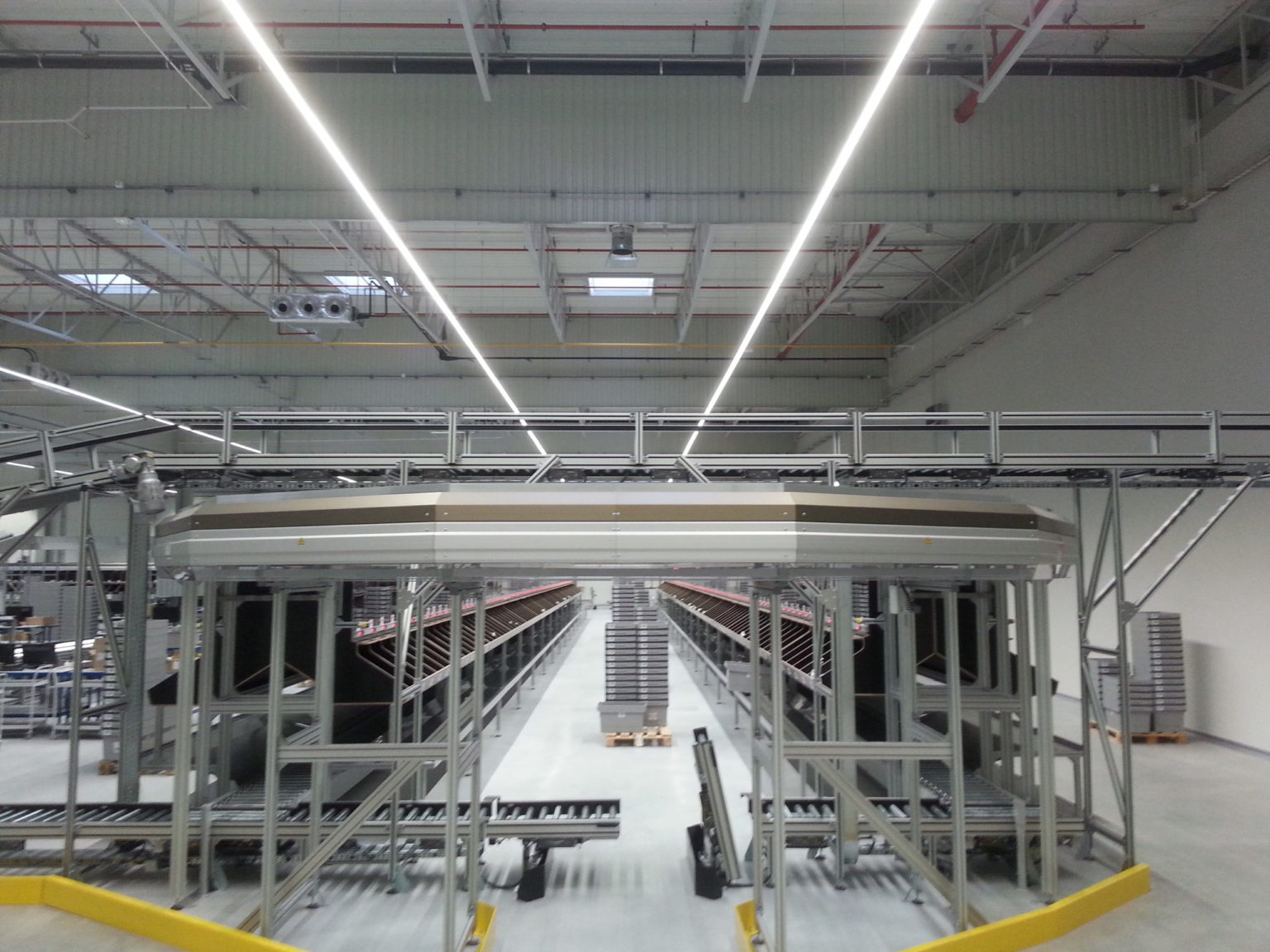

EuroSort Quad Tilt Tray Sorters In Action
